Induction Motors

Over a Power Range up to 375kW (500HP), the range of IP65/IP55 enclosed or IP23 protected Induction Motors satisfies the demands of industrial processes for standard or special environments. High efficiency IE2, IE3, IE4 and non IE motors for variable or fixed speed. Intact offered Motors have been developed to guarantee efficiency levels for the main voltages and frequencies while complying with existing or future energy regulations.

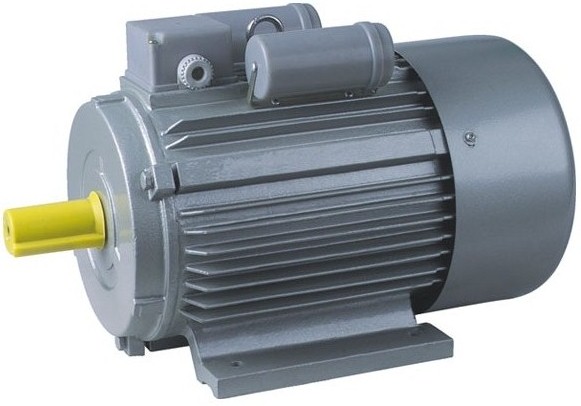

Single Phase Induction Motors 0.06 to 5.5 kW

Single phase induction motors relay or permanent capacitor - 0.06 to 5.5 kW

Standard Features:
  • Single-Phase Induction Motors
  • Rated voltage 110~240V
  • 2-Pole or 4-pole
  • Frequency 50/60Hz
  • Squirrel Cage or Slip Ring Wound Rotor
  • IEC dimensions
  • Insulation Class F or H
  • High starting torque
  • Continuous Duty (S1)
  • Temperate climate
  • Ambient temperature from -15°C to +40°C
  • Mounting height: up to 1000 m above sea level
  • Humidity: Lower than 90%
  • Reliability
  • Guaranteed performance
  • Simplified installation
  • Compact size
  • Special Voltages and frequency
  • Stainless steel shaft
  • B3/B5/B14/B34/B35 mount
  • Motors with standard starting torque (with capacitor run),
  • Health CareMotors with increased starting torque (with capacitor run and specially adjusted parameters),
  • Motors with high starting torque (with capacitor run, capacitor start and centrifugal switch).
  • Resistant start induction run motor with moderately high starting
  • Residential applications
  • Pumps
  • Fans
  • Conveyors
  • Blowers
  • Air compressors
  • Office buildings
  • Milling machines
  • Tools
  • Farm equipment
  • Aeration equipment
  • Other moderate-to-high starting torque applications.

Three Phase Induction Motors 0.75 to 375 kW

Standard Features:
  • Three-Phase Induction Motors
  • Rated Voltage 380 - 400 - 415 / 460
  • Rated output between 0.75 kW and 375 kW
  • Either 2, 4 or 6 poles
  • Frequency 50/60Hz
  • Squirrel Cage or Slip Ring Wound Rotor
  • Rated on the basis of continuous duty (S1) or intermittent periodic duty (S3) with cyclic duration factor of 80% or higher
  • Capable of operating direct on-line or with Inverters
  • Rated for operating conditions in accordance with IEC 60034-1
  • Altitude: Not exceeding 1000 meters
  • Temperate climate.
  • Ambient temperature from -15°C to +40°C.
  • Energy savings: High Efficiency for heavy processes.
  • High efficiency: IE2, IE3 and IE4 classes.
  • High-resistance: designed for corrosive, harsh environments.
  • Y Start-connection for 3KW and below, which gives the option of a 230/3/50 Supply (∆) for 1Ph-3Ph Frequency Drive Connection.
  • Delta-connection for 4KW or more to allow Star-Delta Starting
  • Special Voltages and frequency
  • Stainless steel shaft
  • B3/B5/B14/B34/B35 mount
  • General Purpose Three-phase motors for Normal Applications
  • Inverter Rated for use with a Variable Frequency Inverter Drive having 1ph or 3ph input and 3ph output. Guaranteed performance over a range from 5 to 100 Hz. Available options: encoder, brake, forced ventilation unit, etc.
  • Robotics.
  • Billet Shearing Machines, Section Straightening Machines in Rolling mills.
  • Grinding machine.
  • Varying load machine.
  • Printing machine
  • Lathe machine
  • Drives of fan.
  • food processing machines
  • transport machinery, agriculture machinery
  • machine tools,
  • Mixers and more.
